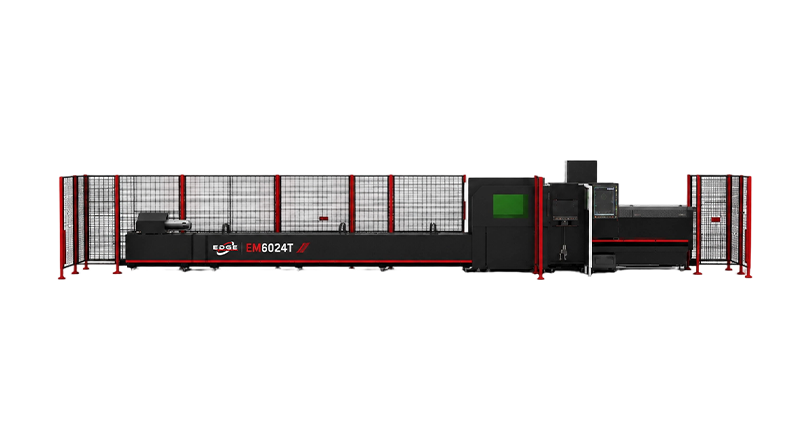

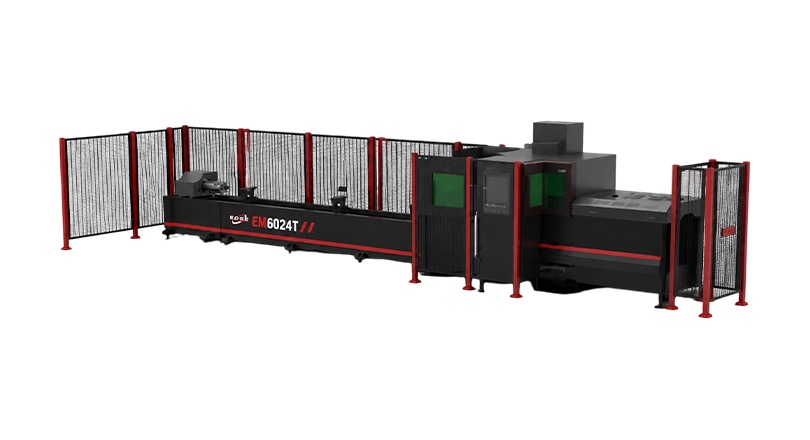

EM6024T

High-Speed Tube Cutting. Stable Two-Chuck Performance.

The EM6024T is a two-chuck fiber laser tube cutting machine engineered for fast, precise, and efficient processing of medium-sized tubes and profiles. Its self-centering pneumatic chucks, intelligent tube support, and automated material handling provide reliable performance for demanding production environments.

  • 1.5–6kW Fiber Laser Power
    Flexible power configurations for different tube materials and thicknesses.
  • Up to 255.9'' Tube Length
    Designed for processing long tubes and profiles in a single setup.
  • Up to Ø9.0'' Tube Diameter
    Supports a wide range of round, square, and rectangular tube applications.
  • Two Self-Centering Chucks
    High-precision clamping helps maintain stable positioning during high-speed cutting.
Request a Quote
Technical Parameters
ModelEM9035NTEM6024T
Laser Power3–6 [kW]1.5–6 [kW]
Max. Tube Length 354.3 [in]78.7–255.9 [in]
Round Tube RangeΦ0.7–14.1 [in]Φ0.7–9.0 [in]
Square Tube Range0.7*0.7–14.1*14.1 [in]0.7*0.7–9.0*9.0 [in]
Max. Tube Weight1543.2 [lb]573.2 [lb]
X/Y-axis Positioning Accuracy±0.00196 [in]±0.00196 [in]
X/Y-axis Repositioning Accuracy ±0.00118 [in]±0.00118 [in]
Max. No-load Speed 196.8 [ft/min]328 [ft/min]
Max. Chuck Rotation Speed60 [rpm]100 [rpm]
Overall Dimensions [L*W*H]663.3*108.2*131.8 [in]375.1*76.7*86.6 [in]
Power Supply380V, 3-phase, 50Hz/60Hz.(Standard configuration)
Available in 208V/240V/480V/600V, 3-phase, 60Hz.
Single-phase power is not supported.
Product Features
Built for Versatile Tube & Profile Applications
The EM6024T is designed for manufacturers that need fast, flexible tube cutting across a wide range of metal fabrication applications. From machinery components and furniture frames to automotive parts and structural profiles, it provides an efficient solution for everyday tube production.
  • Metal Fabrication
  • Automotive Manufacturing
  • Heavy Equipment
  • Agricultural Machinery
  • Electrical Enclosures
  • Home Appliances
  • Steel Structures
  • Tube & Pipe Fabrication
