EM1500CH

High-Power Laser Processing for Large Structural Steel

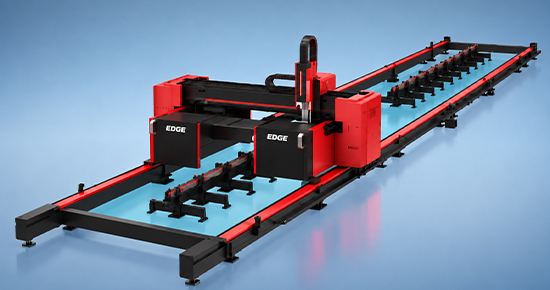

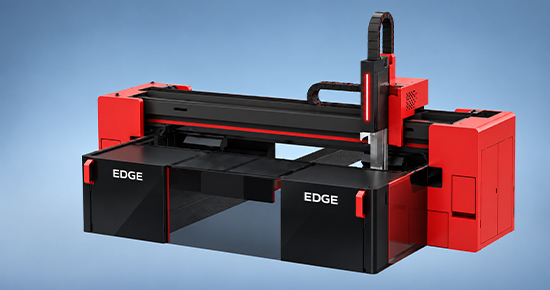

The EM1500CH is a high-power laser cutting production line engineered for large H-beams and structural steel profiles. Combining a rigid dual-drive gantry, dedicated CNC control, high-power laser processing, and dual-station material handling, it delivers accurate and efficient cutting for demanding structural steel applications.

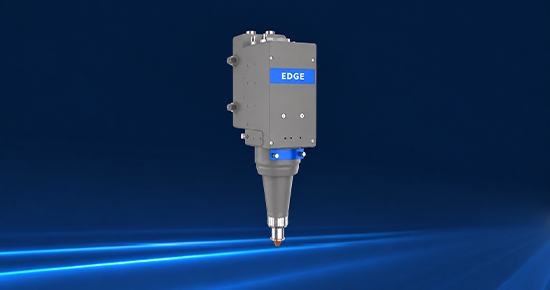

  • 12–30kW High-Power Fiber Laser
    Built for efficient processing of thick structural steel.
  • Large H-Beam Processing
    Designed for oversized H-beams and large structural profiles.
  • Cutting & Beveling Capability
    Supports straight cutting and bevel processing for downstream fabrication.

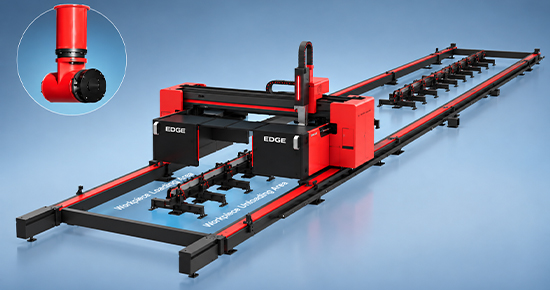

  • Dual-Station Material Handling
    Separate processing and loading/unloading areas help improve production continuity.
Request a Quote
Technical Parameters
ModelEM1500CH
Laser Power12–30 [kW]
Working Area1102.36*118.11 [in]
Max H Beam Width47.24 [in]
Max H Beam Height19.69 [in]
Max Thickness≤1.9 [in] (straight cutting)≤1.3 [in] (flange slab beveling)
X/Y-axis Positioning Accuracy±0.00393 [in]
X/Y-axis Repositioning Accuracy ±0.00196 [in]
Max. No-load Speed 164 [ft/min]
Overall Dimensions [L*W*H]1304.3*232.3*119.3 [in]
Power Supply380V, 3-phase, 50Hz/60Hz.(Standard configuration)
Available in 208V/240V/480V/600V, 3-phase, 60Hz.
Single-phase power is not supported.
Product Features
Industrial Applications of EM1500CH
The EM1500CH is engineered for large-scale structural steel fabrication, where high cutting capacity, precision, and production efficiency are critical. It helps manufacturers process large structural components with fewer secondary operations and a more streamlined production workflow.
  • Metal Fabrication
  • Automotive Manufacturing
  • Heavy Equipment
  • Agricultural Machinery
  • Electrical Enclosures
  • Home Appliances
  • Steel Structures
  • Tube & Pipe Fabrication
