EM-RP6000

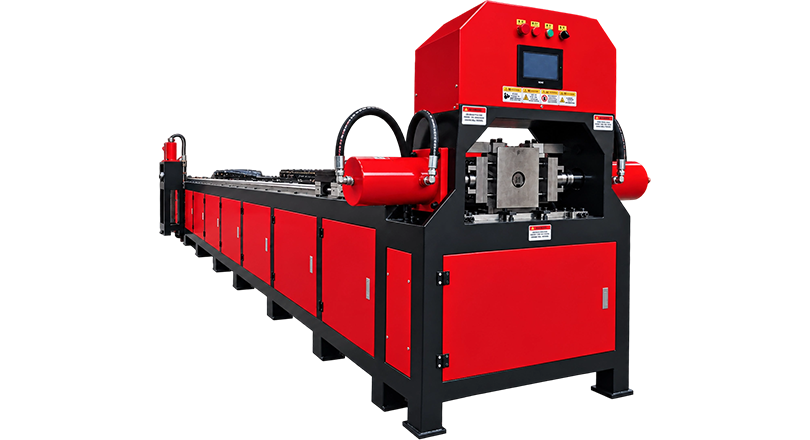

CNC Round Pipe Hydraulic Punching Machine

The EDGE CNC Round Pipe Hydraulic Punching Machine is designed for efficient automatic punching of round and square pipes. With dual hydraulic punching, servo feeding, and PLC control, it delivers precise hole positioning and consistent production for high-volume tube and profile fabrication.

  • Dual-Side Hydraulic Punching
    Two hydraulic cylinders punch from opposite sides, helping improve slug removal and reduce the risk of material sticking in the die.
  • Automatic CNC Feeding
    The servo feeding system automatically positions the pipe according to programmed hole spacing, reducing manual handling and improving production consistency.
  • Flexible Hole Configurations
    By changing the punching dies, the machine can produce square, rectangular, D-shaped, triangular, oval, oblong and other customized hole shapes
  • Smart PLC Control
    The PLC and touchscreen control system manages pipe length, hole quantity, hole spacing and production settings, while monitoring machine status and alarms.
Request a Quote
Technical Parameters
ModelEM-RP6000
Control SystemCNC Automatic
Punching CapacityUp to 45 Holes/Min
Positioning Accuracy±0.012 [in]
Max. Material Thickness0.394 [in]
Max. Material Length236.2 [in]
Hydraulic Punching Force52,900 / 66,100 / 88,200 / 110,200 [lbf]
Hydraulic DriveYes
Motor Power10.1 / 14.8 / 24.8 [HP]
Voltage380–415 V, 3 Phase, 50/60 Hz, Customized
Machine Dimensions267.7*39.4*66.9 [in]
Net WeightApprox. 4,409 [lb]
Control SystemPLC + Touchscreen
Operation ModesAutomatic / Manual
Cylinder OperationSingle / Twin Cylinder
Available MaterialsRound Pipe, Square Pipe, Stainless Steel, Carbon Steel, Iron, Aluminum Profile, PVC


Wide Applications in Tube & Profile Fabrication
The EDGE CNC Round Pipe Hydraulic Punching Machine is suitable for automated hole punching applications across a range of tube and profile fabrication industries.
  • Metal Fabrication
  • Automotive Manufacturing
  • Heavy Equipment
  • Agricultural Machinery
  • Electrical Enclosures
  • Home Appliances
  • Steel Structures
  • Tube & Pipe Fabrication
