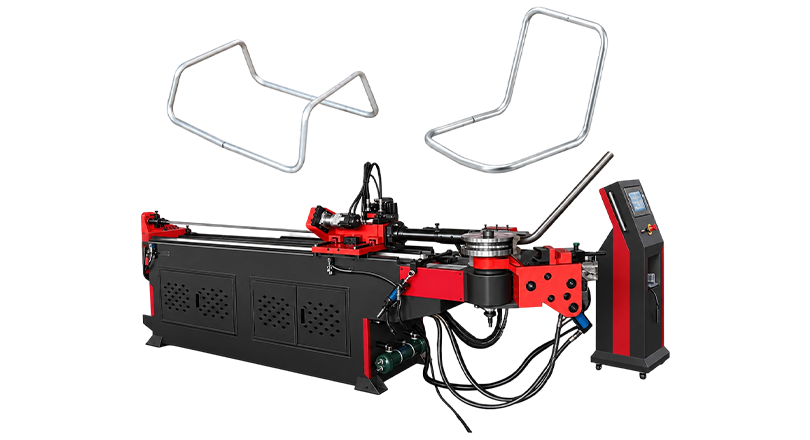

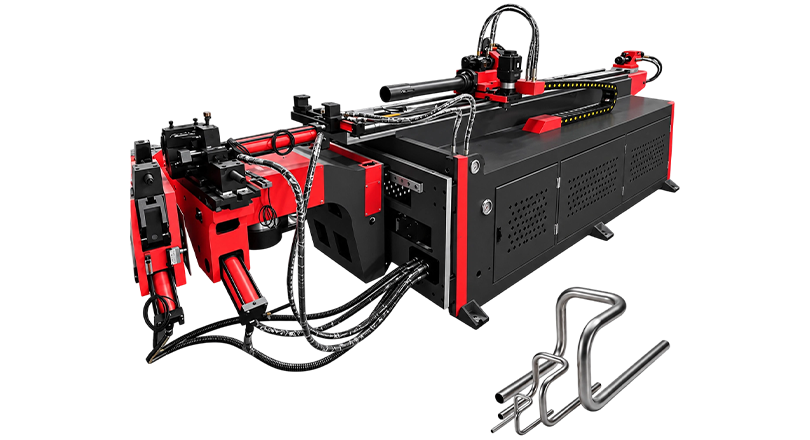

DW50CNC

CNC Pipe Bending Machine

The DW50CNC is a CNC pipe bending machine designed for accurate and efficient tube forming. With a maximum bending capacity of 1.97” × 0.118” round tube, Mitsubishi servo-driven feeding and rotary systems, and CNC touch-screen control, it provides precise and repeatable bending performance for a wide range of tube fabrication applications.

  • 1.97'' Tube Bending Capacity
    Handles round tubes up to 1.97'' diameter * 0.118'' wall thickness, as well as square tubes up to 1.38''*1.38''*0.079''.

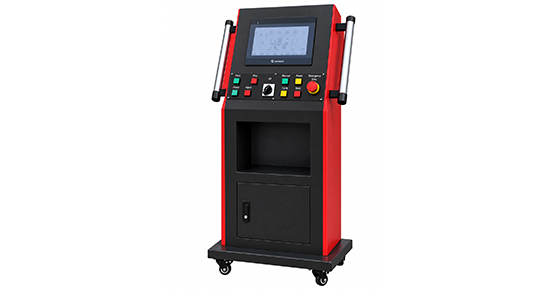

  • CNC Touch Screen Control
    PLC and touch-screen control simplify programming and provide convenient operation for different bending requirements.

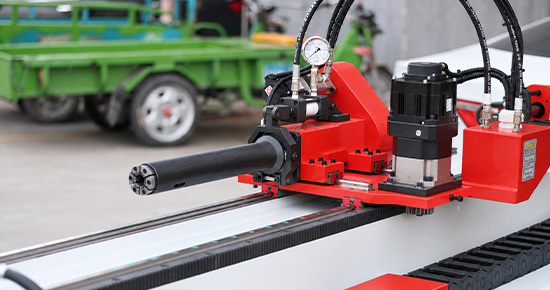

  • Mitsubishi Servo Drive
    Mitsubishi servo motors control feeding and rotary movements for accurate positioning and repeatable bending.

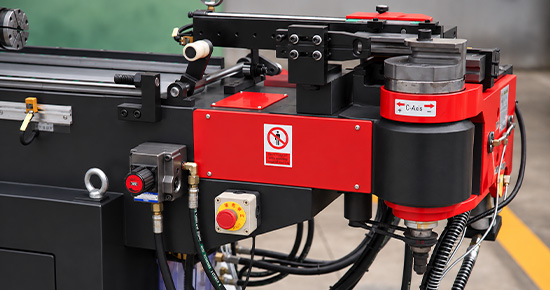

  • High-Speed Multi-Axis Bending
    With up to 85°/sec bending speed, 200°/sec rotary speed, and 39.4 in/sec feeding speed, the machine supports efficient tube production.
Request a Quote
Technical Parameters
ModelDW50CNC
Max. Round Tube CapacityØ1.97''*0.118''
Max. Square Tube Capacity1.38''*1.38''*0.079''
Max. Bending Radius9.84''
Min. Bending RadiusDepending on Tube Diameter
Max. Feeding Length98.4''
Max. Bending Angle190°
Control SystemPLC + Touch Screen
Bending Units16
Bending Speed85 [°/sec]
Rotary Speed200 [°/sec]
Feeding Speed39.4 [in/sec]
Feeding Accuracy±0.0039''
Rotary Accuracy±0.1°
Bending Accuracy±0.1°
Rotary Servo Motor1.0 [hp]
Feeding Servo Motor1.34 [hp]
Main Motor Power7.4 [hp]
Max. Hydraulic Pressure1,740 [psi]
Hydraulic Tank Capacity50.2 [US gal]
Product Features
Versatile Tube Bending for Metal Fabrication
The EDGE EM DW50CNC is designed for manufacturers that require accurate and repeatable tube forming. Its CNC control, servo-driven positioning, and flexible tooling make it suitable for a variety of tube fabrication applications.
  • Metal Fabrication
  • Automotive Manufacturing
  • Heavy Equipment
  • Agricultural Machinery
  • Electrical Enclosures
  • Home Appliances
  • Steel Structures
  • Tube & Pipe Fabrication
