HW Series

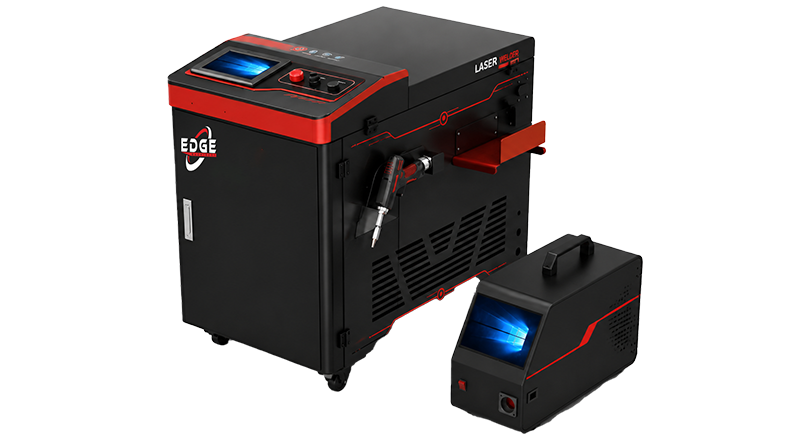

Handheld Fiber Laser Welding Machine

The HW Series is a cost-effective handheld fiber laser welding machine designed for efficient and flexible metal fabrication. Combining laser welding, cutting, cleaning, and weld seam cleaning functions in one compact system, it provides an ideal solution for small and medium-sized manufacturers.

With stable laser performance, lightweight welding operation, and optional wire feeding systems, the HW Series delivers high-quality welds with minimal deformation across various metal applications.


  • 4-in-1 Multifunction Laser Processing
    Combines welding, cutting, surface cleaning, and weld seam cleaning functions to improve production flexibility.
  • High-Quality Welding Performance
    High energy density and low heat input produce strong, smooth weld seams with minimal deformation on stainless steel, carbon steel, aluminum, and other metals.

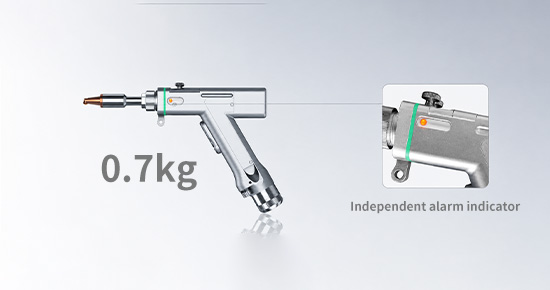

  • Lightweight & Easy-to-Operate Welding Gun
    The ≤0.7 kg ergonomic welding gun reduces operator fatigue and provides flexible welding performance for long-time operation.

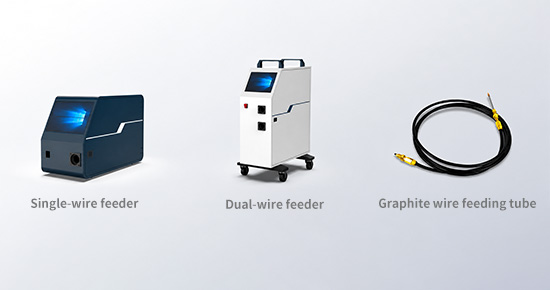

  • Flexible Wire Feeding Options
    Optional single- and dual-wire feeding systems provide stable wire delivery for different materials and welding requirements.
Request a Quote
Technical Parameters
ModelEM 1500HWEM 2000HWEM 3000HW
Laser Power1.5 [kW]2 [kW]3 [kW]
Laser Wavelength1080±5 [nm]1080±5 [nm]1080±5 [nm]
Thickness of Welding Sheet≤0.16 [in]≤0.20 [in]≤0.28 [in]
Diameter of Filler Wire0.03‑0.06 [in]0.03‑0.06 [in]0.03‑0.08 [in]
Machine CoolingWater coolingWater coolingWater cooling
Weight of Welding Gun≤1.54 [lb]≤1.54 [lb]≤1.54 [lb]
Length of Welding Gun Line32.81 [ft]32.81 [ft]32.81 [ft]
Overall Dimensions [L*W*H]38.1*26.0*32.5 [in]38.1*26.0*32.5 [in]38.6*28.3*34.1 [in]
Power SupplySingle-phase 220V, 50Hz/60HzThree-phase 380V, 50Hz/60Hz
Product Features
Flexible Laser Welding Solution for Various Industries
The HW Series is suitable for manufacturers requiring efficient, flexible, and easy-to-use laser welding solutions. Its compact design and multifunction capability make it widely applicable in metal fabrication industries.
  • Metal Fabrication
  • Automotive Manufacturing
  • Heavy Equipment
  • Agricultural Machinery
  • Electrical Enclosures
  • Home Appliances
  • Steel Structures
  • Tube & Pipe Fabrication
