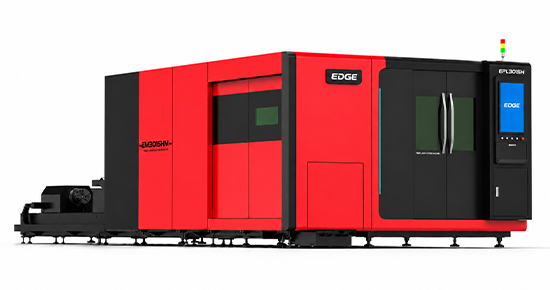

EM3015HM
Fully Enclosed Sheet & Tube Fiber Laser Cutting Machine One Machine. Two Applications. Maximum Production Flexibility.
The EM3015HM combines sheet metal and tube cutting capabilities into one fully enclosed fiber laser system. Designed for manufacturers seeking higher flexibility with reduced investment and floor space, it delivers efficient processing for both flat sheets and various tube profiles.
-
Sheet & Tube Cutting in One MachineProcess metal sheets and tubes with a single integrated solution.
-
Fully Enclosed Safety StructureProvides a safer cutting environment with effective laser protection and smoke control.
-
Dual Exchange PlatformReduce waiting time by enabling simultaneous cutting and loading/unloading operations.
-
6–30kW Fiber Laser OptionsFlexible power configurations for different production requirements.
Technical Parameters
| Model | EM3015HM | EM3015C |
| Laser Power | 6–30 [kW] | 1.5–6 [kW] |
| Working Area (L*W) | 120.0*60.2 [in] | 120.0*60.2 [in] |
| X/Y-axis Positioning Accuracy | ±0.00196 [in] | ±0.00196 [in] |
| X/Y-axis Repositioning Accuracy | ±0.00078 [in] | ±0.00078 [in] |
| Max. No-load Speed | 656.1 [ft/min] | 328.1 [ft/min] |
| Tube Size Range | Φ0.7–8.6 [in] | Φ0.7–8.6 [in] |
| Max. Tube Length | 236.2 [in] | 19.6-236.2 [in] |
| Max. Platform Load | 6613.8 [lb] | 2425.1 [lb] |
| Overall Dimensions [L*W*H] | 363.6*136.8*92.4 [in] | 334.6*147.2*82.7 [in] |
| Power Supply | 380V, 3-phase, 50Hz/60Hz.(Standard configuration) Available in 208V/240V/480V/600V, 3-phase, 60Hz. Single-phase power is not supported. | |
Product Features
-

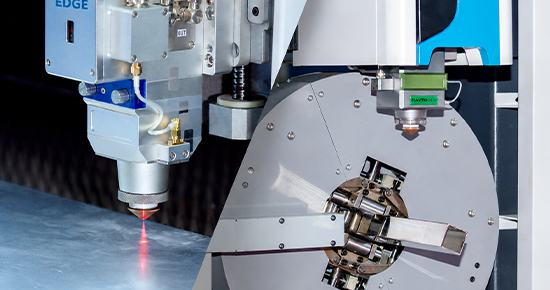

1. Sheet & Tube Cutting in One MachineThe machine integrates sheet metal and tube cutting capabilities, providing a flexible dual-purpose solution that improves production efficiency while reducing equipment investment. -

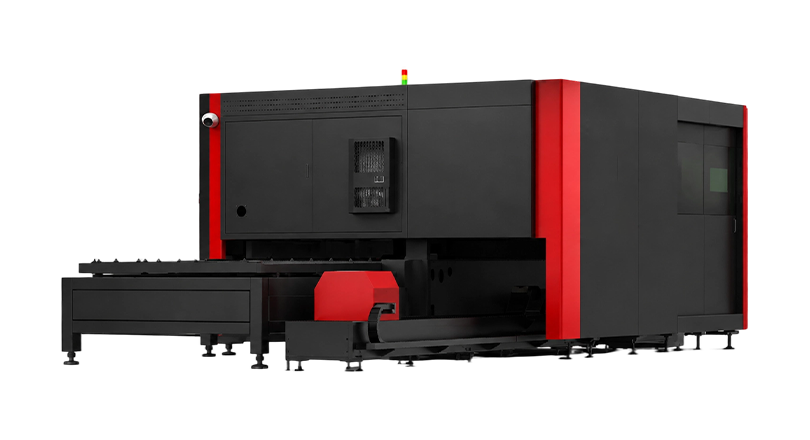

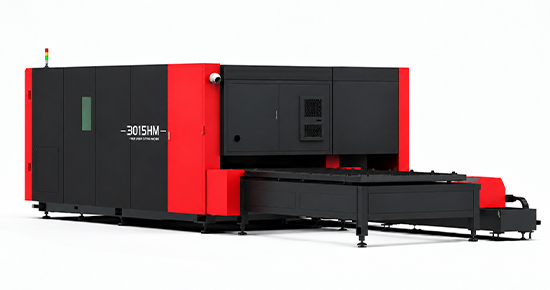

2. Fully Enclosed Safety StructureThe fully enclosed design with dual exchange platforms helps prevent laser exposure, improves operator safety, and meets industrial safety requirements. -

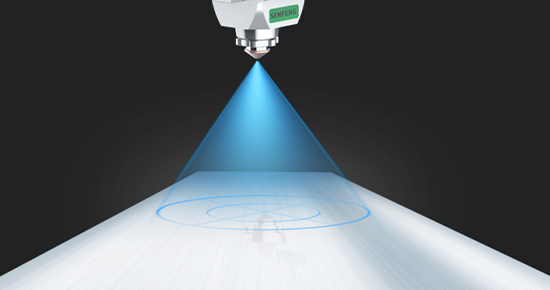

3. Auto-Focus Laser Cutting HeadThe auto-focus cutting head automatically adjusts the focal position according to different materials and thicknesses, ensuring optimal cutting performance and improved efficiency. -

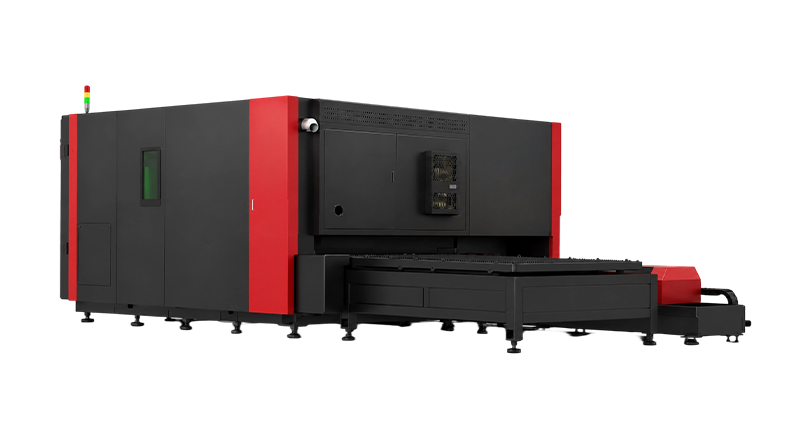

4. Dual Exchange PlatformThe dual-platform design allows loading and unloading while cutting continues, improving material handling efficiency and reducing labor time. -

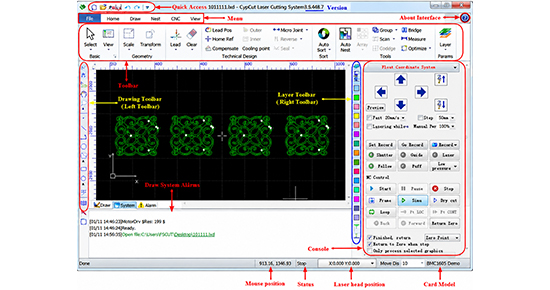

5. EDGE CNC Cutting SystemThe EDGE CNC system provides reliable operation, easy setup, and flexible processing solutions. With an integrated process database for different sheet and tube materials, it enables efficient cutting performance and supports intelligent production management.
Versatile Solution for Multiple Industries
The EM3015HM is designed for manufacturers requiring flexible processing of both sheet metal and tubes. Its combined capability makes it ideal for industries where different material forms are used within the same production workflow.
-
Metal Fabrication
-
Automotive Manufacturing
-
Heavy Equipment
-
Agricultural Machinery
-
Electrical Enclosures
-
Home Appliances
-
Steel Structures
-
Tube & Pipe Fabrication
WHY CHOOSE EDGE
-
APPLICATION-BASED ENGINEERINGEngineered around your materials, thickness range, part sizes, and production goals. -
COMPLETE TURNKEY SOLUTIONSIntegrated equipment, automation, dust extraction, installation, training, and support. -
QUALITY-CONTROLLED MANUFACTURINGEvery machine is inspected, tested, and verified before shipment. -
U.S.-FOCUSED SUPPORTResponsive technical assistance, spare-parts support, and remote troubleshooting troubleshooting.
