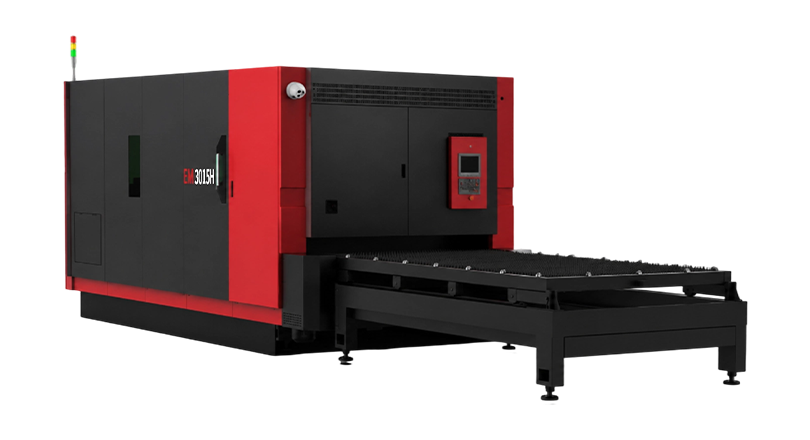

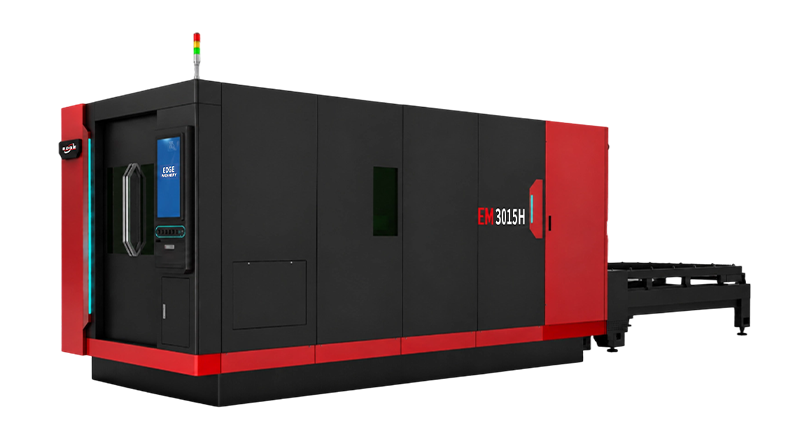

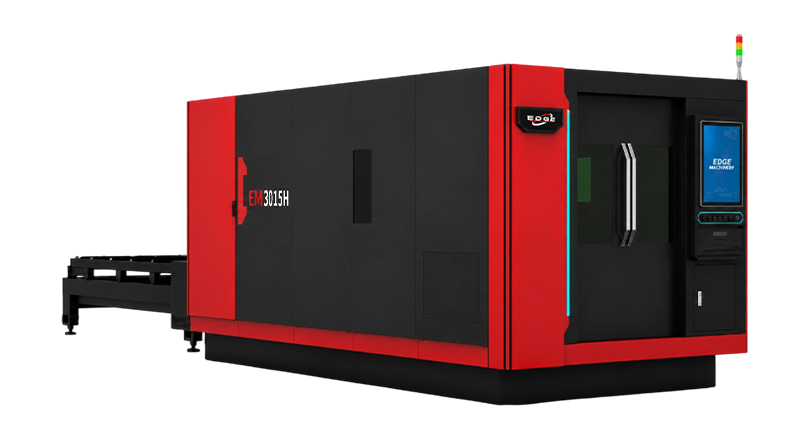

EM3015H

Flexible Power. One Proven Platform.

A versatile 5'*10' fiber laser cutting platform with power configurations from 1.5kW to 80kW, engineered for everything from everyday sheet metal production to demanding heavy-duty cutting.

  • Heavy-Duty Thermally Stable Machine Bed
    Built from high-strength steel and precision-machined for long-term stability, the heavy-duty machine bed is engineered to withstand vibration, thermal stress, and demanding high-power cutting cycles. Its rigid structure helps maintain consistent accuracy and reliable performance over extended production.
  • Intelligent Zoned Dust Extraction
    The intelligent zoned extraction system directs airflow to the active cutting area, efficiently removing smoke and particles during operation. Optimized airflow management helps maintain a cleaner workspace and supports stable cutting performance.

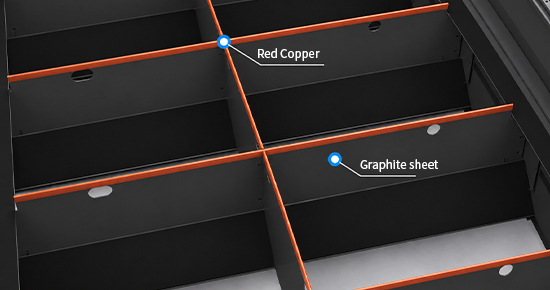

  • Graphite & Copper Heat Protection
    Heat-resistant graphite and copper components are positioned around high-temperature cutting areas to help protect critical machine structures from heat and sparks. This protection supports reliable operation during high-power cutting applications.
  • High-Rigidity Aviation Aluminum Beam
    The lightweight, high-rigidity aluminum beam combines low inertia with excellent structural stability. Its optimized design enables fast dynamic movement while maintaining precise and consistent cutting performance.
Request a Quote
Technical Parameters
ModelEM3015H
Laser Power1.5-12 [kW]6-30 [kW]30-80 [kW]12-30 [kW]
Working Area [L*W]120.0*60.2 [in]121.3*60.2 [in]121.3*60.2 [in]120.0*60.2 [in]
X/Y-axis Positioning Accuracy±0.00196 [in]±0.00196 [in]±0.00196 [in]±0.00196 [in]
X/Y-axis Repositioning Accuracy ±0.00078 [in]±0.00078 [in]±0.00078 [in]±0.00078 [in]
Max. No-load Speed 426.5 [ft/min]656 [ft/min]492 [ft/min]656 [ft/min]
Max. Acceleration2 [G]2 [G]1.5 [G]2 [G]
Max. Load of Platforms2425.0 [lb]6613.9 [lb]6613.9/8818.5  [lb]6613.9 [lb]
Overall Dimensions [L*W*H]335.43*89.37*85.83 [in]332.3*89.4*92.1 [in]332.3*89.4*92.1/368.1*121.3*116.1 [in]337.8*114.0*94.7 [in]
Power Supply380V, 3-phase, 50Hz/60Hz.(Standard configuration)
Available in 208V/240V/480V/600V, 3-phase, 60Hz.
Single-phase power is not supported.


Product Features
From Everyday Fabrication to Heavy-Duty Production
The EM3015H adapts to a wide range of metal fabrication requirements through flexible laser power configurations. From general sheet metal processing and electrical enclosures to automotive components, heavy equipment, structural steel, and demanding thick-plate applications, the platform can be configured around your production needs.
  • Metal Fabrication
  • Automotive Manufacturing
  • Heavy Equipment
  • Agricultural Machinery
  • Electrical Enclosures
  • Home Appliances
  • Steel Structures
  • Tube & Pipe Fabrication
